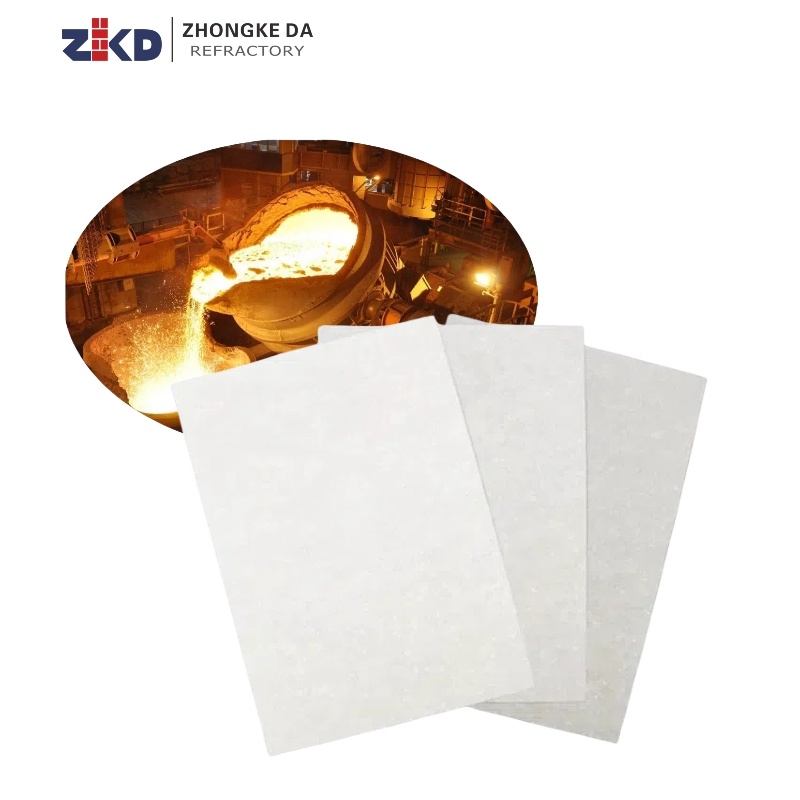

Industrial Ceramic Fiber Insulation Board for High Temp Kilns

Industrial Ceramic Fiber Insulation Board

1260°C Rated | Custom Sizes | High Temp Thermal Insulation for Kilns & Furnaces

Our Ceramic Fiber Insulation Boards are designed for high-temperature thermal insulation in industrial kilns, furnaces, and combustion chambers. Made from high-purity alumino-silicate fibers and formed through vacuum shaping, these boards offer excellent heat resistance up to 1260°C, low thermal conductivity, and outstanding dimensional stability under extreme conditions.

We offer custom thicknesses, dimensions, and densities to match your specific application needs.

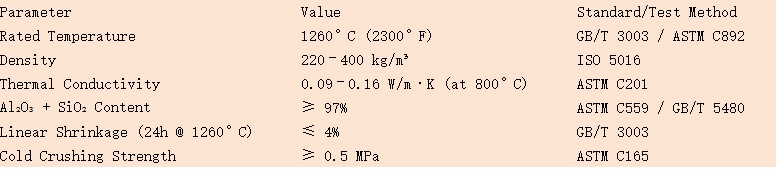

Key Technical Specifications

Features & Advantages

✅ Withstands continuous use at 1260°C (2300°F) ✅ Low thermal conductivity ensures energy efficiency

✅ Excellent resistance to thermal shock and erosion ✅ Lightweight and easy to cut, shape, or machine

✅ Non-asbestos, eco-friendly, and safe to handle ✅ Custom molds and shapes available upon request
Parameters:

Item	ST BOD	GC BOD	HZ BOD	TP64 BOD	TP74 BOD
Specification Temp. (ºC)	1260	1260	1430	1600	1700
Working Temp (ºC)	1000	1100	1350	1450	1550
Bulk Density (kg/m³)	280-400	280-400	280-400	400-500	450-500
Linear Shrinkage after Heating（%）	-3.0 （1000℃）*24h	-3.0 （1100℃）*24h	-3.0 （1350℃）*24h	-2.0 （1450℃）*8h	-2.0 （1550℃）*8h
Thermal Conductivity (w/m.k)	0.085(400ºC) 0.132(800ºC) 0.190(1000ºC)	0.085(400ºC) 0.132(800ºC) 0.190(1000ºC)	0.085(400ºC) 0.132(800ºC) 0.180(1000ºC)	0.135(400ºC) 0.182(800ºC) 0.230(1000ºC)	0.185(400ºC) 0.232(800ºC) 0.280(1000ºC)
Chemical Composition(%) Al₂O₃	38	42	34	64	75
Chemical Composition(%) Al₂O₃+SiO₂	96	98	/	99	99
Chemical Composition(%) ZrO₂	/	/	15-17	/	/
Chemical Composition(%) Fe₂O₃	1.0	0.5	0.2	0.2	0.2
Chemical Composition(%)Na₂O+K₂O	0.5	0.3	0.2	0.2	0.2
Size(mm)(LWT)	90060020/25/30/40/50	100050020/25/30/40/50	100060020/25/30/40/50	1200100020/25/30/40/50	120060020/25/30/40/50
