CA50 vs CA70 vs CA80 Refractory Cement: How to Choose the Right Binder?

August 3 Post By Orietta

Introduction: Why Choosing the Right Refractory Cement Matters

<a href="https://www.zkdrefractories.com/e_products/Refractory-Cement-7-9.html">Refractory cement</a> is a critical binder used in <a href="https://www.zkdrefractories.com/e_products/Refractory-Castable-7-14.html">refractory castables</a>, playing an important role in determining the strength, durability, and high-temperature performance of the final lining system.

However, not all refractory cements provide the same performance. Calcium aluminate cement (CAC) is available in different grades, such as CA50, CA70, and CA80, with different alumina contents, setting characteristics, strength development, and temperature resistance.

Choosing the right grade of refractory cement is essential for achieving reliable performance under different working conditions. An unsuitable cement selection may lead to problems such as early strength loss, cracking, poor resistance to thermal stress, and reduced service life of refractory linings.

Therefore, understanding the differences between CA50, CA70, and CA80 refractory cement can help engineers and buyers select the most suitable binder for their refractory castable applications.

1.What is Calcium Aluminate Cement?

Calcium Aluminate Cement (CAC), also known as high alumina cement, is a special binder widely used in refractory castables and high-temperature applications.

Unlike ordinary cement, CAC contains a high amount of alumina (Al₂O₃) and calcium oxide (CaO), which provides excellent heat resistance, good corrosion resistance, and stable performance under high-temperature conditions.

The alumina content is one of the key factors that determines the performance of calcium aluminate cement. Based on different Al₂O₃ levels and mineral compositions, CAC is commonly classified into CA50, CA70, and CA80 grades.

Main Components:

Al₂O₃ (Alumina)

• Improves high-temperature strength

• Enhances corrosion resistance

CaO (Calcium Oxide)

• Provides hydraulic bonding properties

• Helps develop early strength after mixing with water

Due to these advantages, calcium aluminate cement is widely used as a binder for refractory castables in cement kilns, steel furnaces, boilers, and other high-temperature industries.

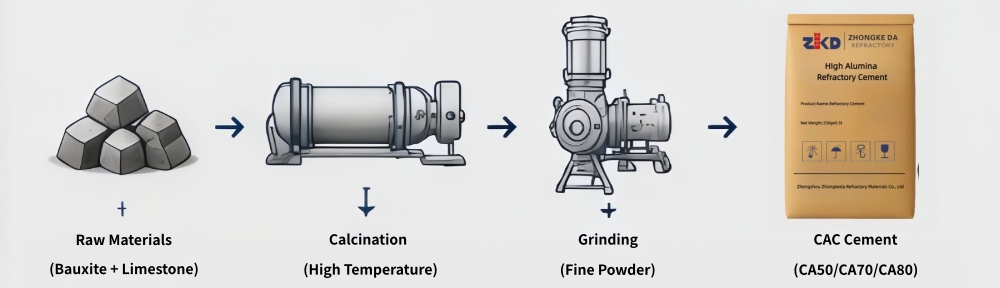

Production Process:

Bauxite + Limestone → High Temperature Calcination → Grinding → Calcium Aluminate Cement (CA50 / CA70 / CA80)

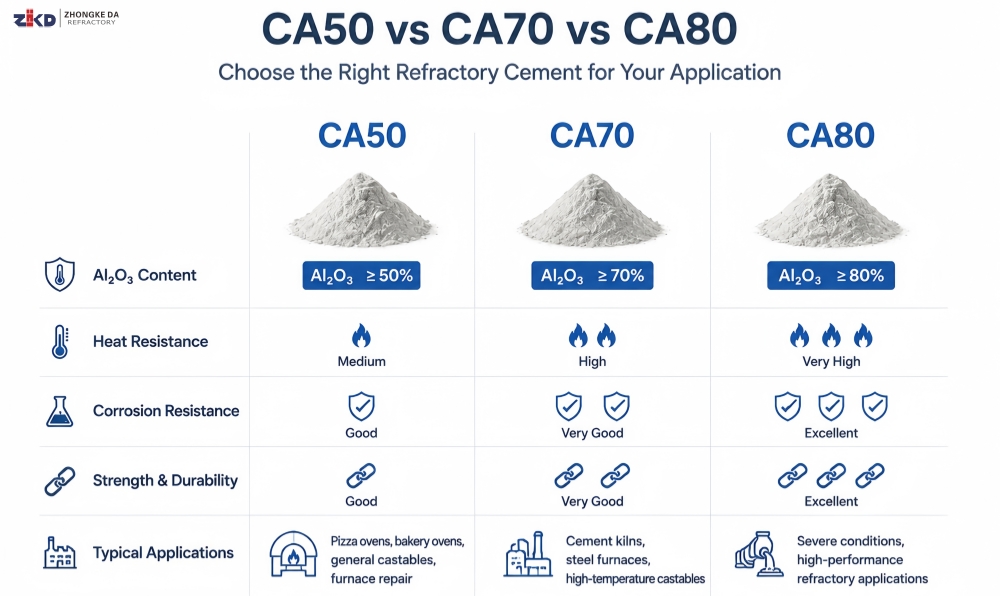

2.Difference Between CA50, CA70 and CA80 Refractory Cement

Calcium aluminate cement is classified into different grades based on alumina (Al₂O₃) content and performance requirements. The main differences between CA50, CA70, and CA80 are high-temperature resistance, corrosion resistance, and suitable applications.

Grade	Al₂O₃ Content	Main Features	Typical Applications
CA50	Around 50%	Balanced performance, good bonding strength, cost-effective	Pizza ovens, bakery ovens, refractory castables, furnace repair
CA70	Around 70%	Higher temperature resistance and better durability	Cement kilns, steel furnaces, high-temperature castables
CA80	Around 80%	Excellent thermal stability and corrosion resistance	Severe conditions and high-performance refractory applications

• <a href="https://www.zkdrefractories.com/e_productshow/?28-CA50-Refractory-Cement-Manufacturer--Calcium-Aluminate-Cement-for-Castables-28.html">CA50 Refractory Cement</a>
CA50 is a widely used calcium aluminate cement that provides a good balance between performance and cost. It offers reliable bonding strength and heat resistance, making it suitable for general refractory castables and commercial heating applications such as pizza ovens and bakery ovens.

• <a href="https://www.zkdrefractories.com/e_productshow/?29-CA70-Refractory-Cement-Manufacturer--High-Alumina-Calcium-Aluminate-Cement-29.html">CA70 Refractory Cement</a>

CA70 provides higher alumina content and improved resistance to high temperatures and chemical attack. It is commonly selected for applications requiring better durability and longer service life.

• <a href="https://www.zkdrefractories.com/e_productshow/?30-CA80-Refractory-Cement-Manufacturer--Premium-Calcium-Aluminate-Cement-30.html">CA80 Refractory Cement</a>
CA80 is a high-performance grade designed for demanding environments. With higher alumina content, it provides excellent thermal stability and corrosion resistance for critical refractory applications.

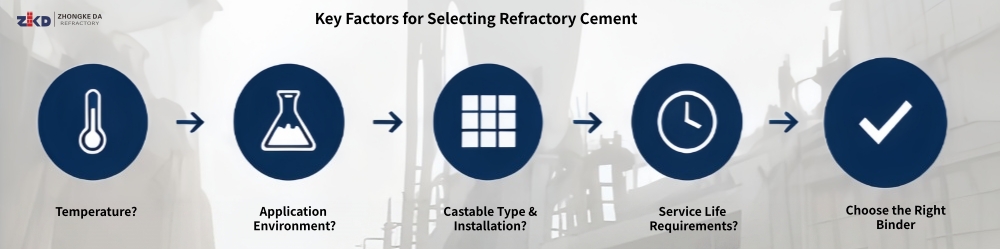

3.How to Choose the Right Refractory Cement?

Selecting the right refractory cement requires more than simply choosing a higher alumina grade. The correct binder should match the actual working conditions, installation method, and performance requirements of the refractory lining.

Before purchasing refractory cement, customers should consider the following key factors:

Selection Factor	Why It Matters
Working Temperature	Different applications require different levels of heat resistance. The cement should maintain stable performance at the actual operating temperature.
Application Environment	Exposure to abrasion, chemicals, slag, or thermal shock can affect refractory performance.
Castable Type	The cement should be compatible with the refractory aggregate and castable formula to achieve proper strength and durability.
Installation Method	Different construction methods, such as casting, repairing, or oven lining installation, may require different material characteristics.
Service Life Requirements	Critical equipment usually requires materials with better durability and long-term stability.

Key Questions Before Selection

Before choosing refractory cement, it is recommended to confirm:

1. What is the working temperature?

Higher temperature applications require refractory materials with suitable thermal stability.

2. What is the final application?

A pizza oven, industrial furnace, cement kiln, and steel furnace may require different refractory solutions.

3. What performance is most important?

Depending on the project, priority may be given to:

• Cost efficiency

• High temperature resistance

• Corrosion resistance

• Longer service life

Choosing the right refractory cement helps improve lining performance, reduce maintenance frequency, and increase the service life of refractory structures.

4.CA50 vs CA70 vs CA80 in Refractory Castables

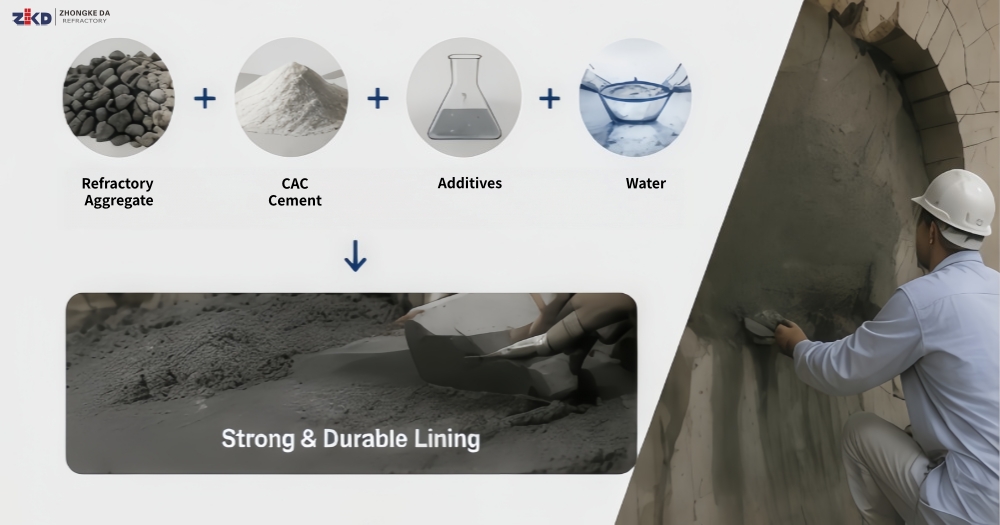

In refractory castable production, calcium aluminate cement works together with refractory aggregates, additives, and other components to form a complete lining material.

The choice of cement grade can influence the final properties of castables, including strength development, drying performance, thermal stability, and service life.

Performance Aspect	Influence of Cement Grade
Bonding Strength	The binder system determines the initial strength and bonding quality of the castable after installation.
High-Temperature Strength	A suitable cement grade helps the castable maintain strength during high-temperature operation.
Thermal Stability	Proper binder selection improves resistance to thermal cycling and temperature changes.
Durability	The right cement system contributes to longer lining life under specific working conditions.

Different Castable Systems Require Different Binder Selection

A refractory castable is not determined by cement alone. The final performance depends on the combination of:

• Cement grade

• Refractory aggregate

• Additives

• Mixing ratio

• Installation method

For example:

• General-purpose castables may focus on workability and cost efficiency.

• High-temperature castables require stronger performance retention at elevated temperatures.

• Wear-resistant or corrosion-resistant castables need a binder system suitable for harsh operating environments.

Therefore, selecting the right calcium aluminate cement is an important step in designing a reliable refractory castable system.

Zhongkeda Refractory Castable Solutions

With experience in refractory materials manufacturing, Zhongkeda provides customized refractory castable solutions by selecting suitable raw materials and binder systems according to different application requirements.

Our solutions cover:

• <a href="https://www.zkdrefractories.com/e_productshow/?16-High-Alumina-Refractory-Castable-High-Strength-Heat-Resistant-Castable-for-Kilns-Boilers--Furnaces-16.html">High alumina castables</a>

• <a href="https://www.zkdrefractories.com/e_productshow/?31-Low-Cement-Castable-Manufacturer--High-Strength-Refractory-Castable-31.html">Low cement castables</a>

• <a href="https://www.zkdrefractories.com/e_productshow/?34-Silicon-Carbide-Castable-Manufacturer--Wear-Resistant-Refractory-34.html">Wear-resistant castables</a>

• <a href="https://www.zkdrefractories.com/e_productshow/?32-Lightweight-Refractory-Castable-Manufacturer--Insulating-Castable-32.html">Heat-resistant castables</a>

Conclusion

Choosing the right refractory cement binder is essential for achieving stable performance and longer service life of refractory castables.

CA50, CA70, and CA80 calcium aluminate cements each have their own advantages. The best choice is not always the highest alumina grade, but the binder that best matches the specific application requirements, including working temperature, castable formulation, and operating environment.

With professional experience in refractory materials manufacturing, Zhongkeda provides calcium aluminate cement and customized refractory solutions to meet different customer requirements.

By selecting the right binder and refractory materials, customers can improve lining performance, reduce maintenance costs, and achieve more reliable operation.
