Zhengzhou Zhongkeda Refractory Materials Co., Ltd

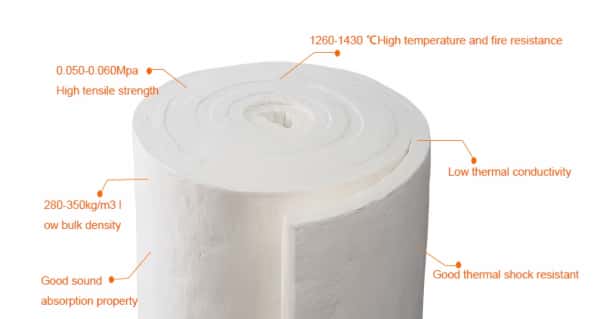

Ceramic Fiber Blanket
Lightweight, heat-resistant, energy-efficient, and safe—ideal for industrial insulation, fireproofing, and extreme-temperature applications.
Ceramic fiber blanket, crafted from high-purity alumina and silica, is a versatile thermal insulation material renowned for its outstanding heat resistance, minimal thermal conductivity, and chemical inertness. A top choice for high-temperature industrial insulation and energy efficiency projects.
🔥High-Temperature Resistance：Stable operating temperature up to 1350°C, suitable for various high-temperature environments, ensuring consistent performance in heat treatment systems.
🌡️Excellent Thermal Insulation：Significantly lower thermal conductivity than traditional materials, effectively preventing heat loss and enhancing energy efficiency.
🔄Corrosion & Thermal Shock Resistance：Withstands frequent thermal cycling and exposure to high-temperature gases, offering long-lasting durability in harsh conditions.
🧤Lightweight & Flexible：Easy to cut and install, ideal for wrapping complex shapes and fitting irregular operating conditions.
♻️Eco-Friendly & Safe：Free of asbestos, compliant with RoHS and REACH standards, supporting environmentally sustainable applications.
🔥Industrial Kilns：Furnace linings, backup insulation
⚡Power & Metallurgy：Duct/pipe insulation, turbine wrapping
🛡️Fire Protection：Fire doors, structural cladding
✈️Aerospace：Engine thermal shielding
🚢Transportation：Ship/rail fireproofing
| Item | 1050C | 1260ST | 1260HP | 1350HA | 1400LZ | 1430HZ | 1500CR | 1600PCF | |
| Max.Service Temperature(℃） | 1050 | 1260 | 1260 | 1350 | 1400 | 1430 | 1500 | 1600 | |
| Density, kg/m³ | 96 / 128 / 140 / 160 | 130-170 | |||||||
| Liner Shrinkage, % (24h, 128kg/m³) |
≤4.0 950°C |
≤4.0 1050°C |
≤4.0 1100°C |
≤4.0 1200°C |
≤4.0 1250°C |
≤4.0 1350°C |
≤4.0 1400°C |
≤4.0 1500°C |
|
| Tensile Strength,（MPa） | 70 | 75 | 75 | 55 | 75 | 75 | 55 | 75 | |
|
Thermal Conductivity Rate, W/(m·k) (128kg/m³) |
600℃ | 0.2 | 0.15 | 0.15 | / | / | / | / | / |
| 800℃ | 0.29 | 0.22 | 0.21 | 0.21 | 0.21 | 0.21 | 0.19 | 0.19 | |
| 1000℃ | / | 0.31 | 0.30 | 0.31 | 0.31 | 0.31 | 0.28 | 0.28 | |
| Al2O3,（%）≥ | 38 | 42 | 45 | 52-55 | 5-7 | 37 | 37 | 70 | |
| Al2O3+SiO2,（%）≥ | 97 | 98 | 98 | 98 | 92 | 83 | 93 | 99 | |
| ZrO2,（%） | / | / | / | / | 5-7 | 15-17 | / | / | |
| Cr2O3,（%） | / | / | // | / | / | / | 3-5 | / | |
| Other≤ | 3.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 1.0 | |

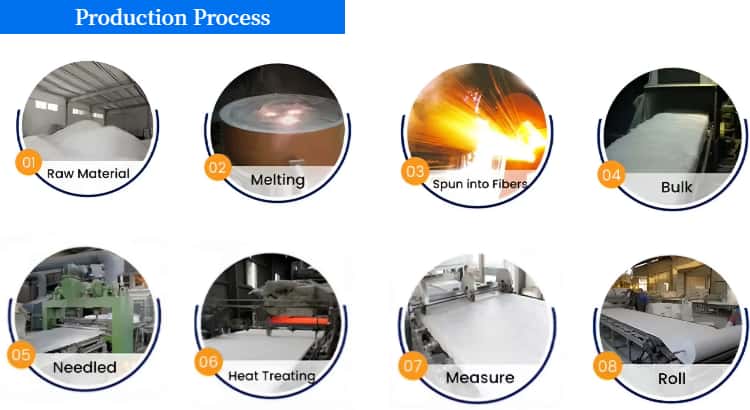

Ceramic Fiber Blanket Process
Q:What is the maximum temperature your ceramic fiber blanket can withstand?
A:Our ceramic fiber blankets are rated for continuous use up to 1350°C (2462°F), depending on the specific grade (standard, high-purity, or zirconium-enhanced). They are designed for excellent thermal stability in extreme heat environments.
Q:Do your ceramic fiber blankets meet international safety and environmental standards?
A:Yes, all our ceramic fiber products are asbestos-free and fully comply with RoHS and REACH regulations. Safety and environmental compliance are core to our manufacturing process.
Q:What is the minimum order quantity (MOQ) for wholesale?
A;Our standard MOQ for wholesale orders is 100 square meters or 50 rolls, depending on thickness and density. However, sample orders and trial orders are welcome to support first-time buyers.
Q:Can you provide custom sizes, thicknesses, or packaging?
A:Absolutely. We offer OEM/ODM services, including customized dimensions, private-label packaging, and bulk pallet packing for export. Let us know your specific requirements.
Q:How is the product packaged for shipping?
A:Ceramic fiber blankets are rolled and packed in PE plastic bags, then loaded onto wooden pallets or cartons for better protection during international shipping. Customized packaging is available.
Q:What is your lead time for bulk orders?
A:Typical production lead time is:
3–7 days for regular sizes in stock
7–15 days for customized specifications
Shipping time depends on your location and chosen delivery method.
Q:What are your shipping options?
A:We support:
FOB, CIF, DDP (Sea Freight)
Air Freight
Express (DHL, FedEx, UPS) for urgent orders
Q:Can I request a sample before placing a bulk order?
A:Absolutely. We provide free standard samples (within size limits), with shipping costs covered by the buyer. For specialized samples, a small production fee may apply.
